Brake NVH Dynamometer with Environmental Control
Standards Compliant Testing
SAE J2521 – Brake Noise Test Method (AK Master) | SAE J2598 – Brake Creep Groan Test Method | ISO 26867 – Brake NVH dynamometer testing
Why Environmental Control Is Critical for Brake NVH Testing
Brake Noise, Vibration and Controlled Environmental Testing for Brake Noise, Vibration and Harshness Validation – Harshness (NVH) phenomena are highly sensitive to ambient temperature, humidity, airflow, and thermal history
Innovation Rooted in Engineering Depth
Testing brake systems without controlled environmental conditions often leads to inconsistent results that do not correlate with real-world vehicle behavior.

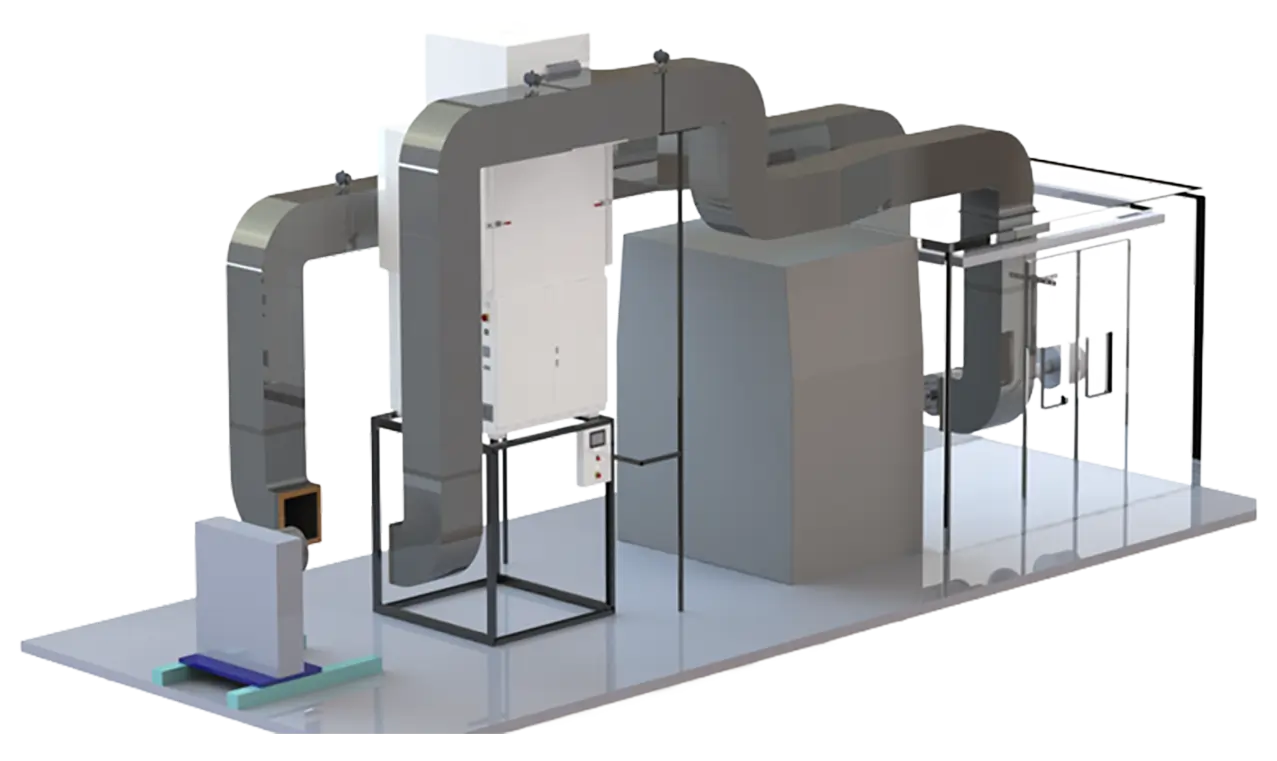

CME Brake NVH Dynamometer Environmental Chambers enable precise control of temperature, humidity, and airflow around brake dyno systems—delivering repeatable, standards-compliant NVH validation.
Purpose-Built Environmental Chambers for Brake NVH Dynos
CME designs environmental chambers specifically engineered to integrate with brake NVH dynamometers.
These chambers control the surrounding test environment while allowing accurate mechanical operation, instrumentation access, and acoustic measurement.
Controlled Temperature, Humidity and Airflow
CME chambers provide stable control of ambient temperature and humidity to evaluate brake noise behavior across different climatic conditions.
Conditioned airflow systems simulate vehicle cooling air and ensure repeatable thermal and acoustic conditions during test cycles.
Compliance with Brake NVH and Automotive Test Standards
- SAE J2521 – Brake Noise Test Method (AK Master)
- SAE J2598 – Brake Creep Groan Test Method
- ISO 26867 – Brake NVH dynamometer testing
- OEM-specific brake NVH and environmental validation standards
- ISO 16750 – Environmental conditions for automotive components
Typical Applications
- Brake squeal, moan, judder, and groan evaluation
- Disc and drum brake NVH development
- Friction material and pad formulation testing
- Brake system benchmarking and validation
- EV and hybrid brake NVH testing
Digital Intelligence with enviCoM® 4.0
CME Brake NVH environmental chambers are powered by enviCoM® 4.0, CME’s proprietary digital control and IoT platform.
The platform enables synchronized control of environmental parameters with dyno test sequences, real-time monitoring, secure data logging, and automated reporting.
Control Environment for Brake NVH Validation
Define temperature, humidity, airflow, and acoustic considerations for brake NVH dynamometer testing.
Why Choose CME for Brake NVH Environmental Chambers?
Purpose-built integration with brake NVH dynamometers
Stable and repeatable environmental control
Standards-compliant automotive NVH testing
Digital-first monitoring and traceability
Strong lifecycle and service support
Flexible Dyno Integration Configurations
CME chambers can be designed for single-ended or twin-ended brake dynos, with acoustic treatments, viewing panels, and instrumentation ports.
Both modular and fully walk-in chamber configurations are available to suit laboratory and production development environments.
Engineered for Thermal, Acoustic and Structural Performance
Brake NVH testing places simultaneous thermal, acoustic, and mechanical demands on the test enclosure.
CME chambers are engineered with reinforced structures, acoustic insulation, controlled airflow paths, and validated thermal systems for long-term reliability.
Lifecycle Support with Levito
Through CME’s lifecycle partner Levito, brake NVH environmental chambers are supported with installation, commissioning, calibration coordination, preventive maintenance, and long-term service.
Also Known As
- Brake NVH Environmental Chamber
- Brake Dyno Environmental Chamber
- Brake Noise Test Chamber
- Automotive NVH Test Chamber
- Brake Dynamometer Climatic Chamber
Data-Driven Brake NVH Correlation
Digitally logged environmental data improves correlation between dyno results and vehicle-level NVH performance.
What is a Brake NVH Dynamometer Environmental Chamber?
A Brake NVH Dynamometer Environmental Chamber is a specialized test enclosure designed to provide controlled temperature, humidity, and airflow conditions around a brake NVH dynamometer. It enables accurate evaluation of brake noise, vibration, and harshness (NVH) behavior under realistic environmental conditions.
Why is environmental control important in brake NVH testing?
Brake noise phenomena such as squeal, groan, and moan are highly sensitive to temperature, humidity, and airflow. Environmental control ensures repeatable test conditions and reliable correlation between dynamometer results and real-world vehicle behavior.
What brake NVH tests are typically performed using these chambers?
Brake NVH dynamometer chambers are used for squeal testing, creep groan analysis, judder evaluation, and brake noise characterization across different operating and environmental conditions.
Which standards are supported by Brake NVH Dynamometer Environmental Chambers?
CME Brake NVH chambers are designed to support standards such as SAE J2521 (AK Master), SAE J2598, ISO 26867, ISO 16750, and OEM-specific automotive brake NVH test procedures.
What environmental conditions can be simulated?
CME chambers can simulate a wide range of ambient temperatures, controlled humidity levels, and airflow conditions representative of on-road driving and laboratory requirements.
How are CME Brake NVH Chambers different from standard enclosures?
CME chambers are purpose-engineered for brake NVH testing, offering uniform environmental control, acoustic considerations, integration with dyno systems, and digital synchronization with test equipment.
Can Brake NVH Chambers be customized?
Yes. CME Brake NVH Dynamometer Chambers can be customized for dyno size, airflow design, temperature and humidity range, acoustic treatment, safety systems, and automation.
How is test control and data logging managed?
All CME Brake NVH Chambers are powered by the enviCoM® 4.0 controller, enabling real-time monitoring of environmental parameters, alarm management, and exportable test data for analysis and reporting.
What safety features are included in Brake NVH Dynamometer Chambers?
CME chambers include safety interlocks, emergency shutdown logic, controlled ventilation, fire detection interfaces, and operator safety systems suitable for high-energy rotating equipment.
Which industries use Brake NVH Dynamometer Environmental Chambers?
These chambers are widely used by automotive OEMs, Tier-1 brake system suppliers, EV manufacturers, and automotive R&D and validation laboratories.
What service and lifecycle support is available?
CME provides full lifecycle support through Levito, including installation, commissioning, integration support, calibration coordination, preventive maintenance, and long-term service support.
How do Brake NVH Dynamometer Chambers fit into CME’s automotive testing portfolio?
Brake NVH chambers complement CME’s AGREE, environmental, battery, and combined stress systems, enabling comprehensive automotive durability and NVH validation.
