Humidity Freeze Test Chambers

Accelerated Reliability Testing for PV Modules Under Moisture and Freezing Stress. Photovoltaic (PV) modules deployed in real world environments are exposed to cycles of high humidity followed by sub-zero temperatures. This combination creates severe mechanical and material stress due to moisture ingress, expansion during freezing, and repeated contraction during thawing.

Standards Compliant Testing
IEC 61215 – Humidity Freeze (HF) Test for PV Modules | Full-size PV modules | Product Temperature Control

Why Humidity Freeze Testing Is Critical for PV Modules

Innovation Rooted in Engineering Depth

Humidity Freeze testing is a mandatory reliability test to validate the structural integrity, sealing effectiveness, and long term durability of PV modules.

Purpose-Built Humidity Freeze Chambers for PV Testing

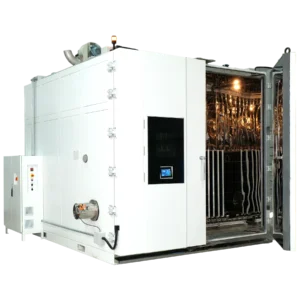

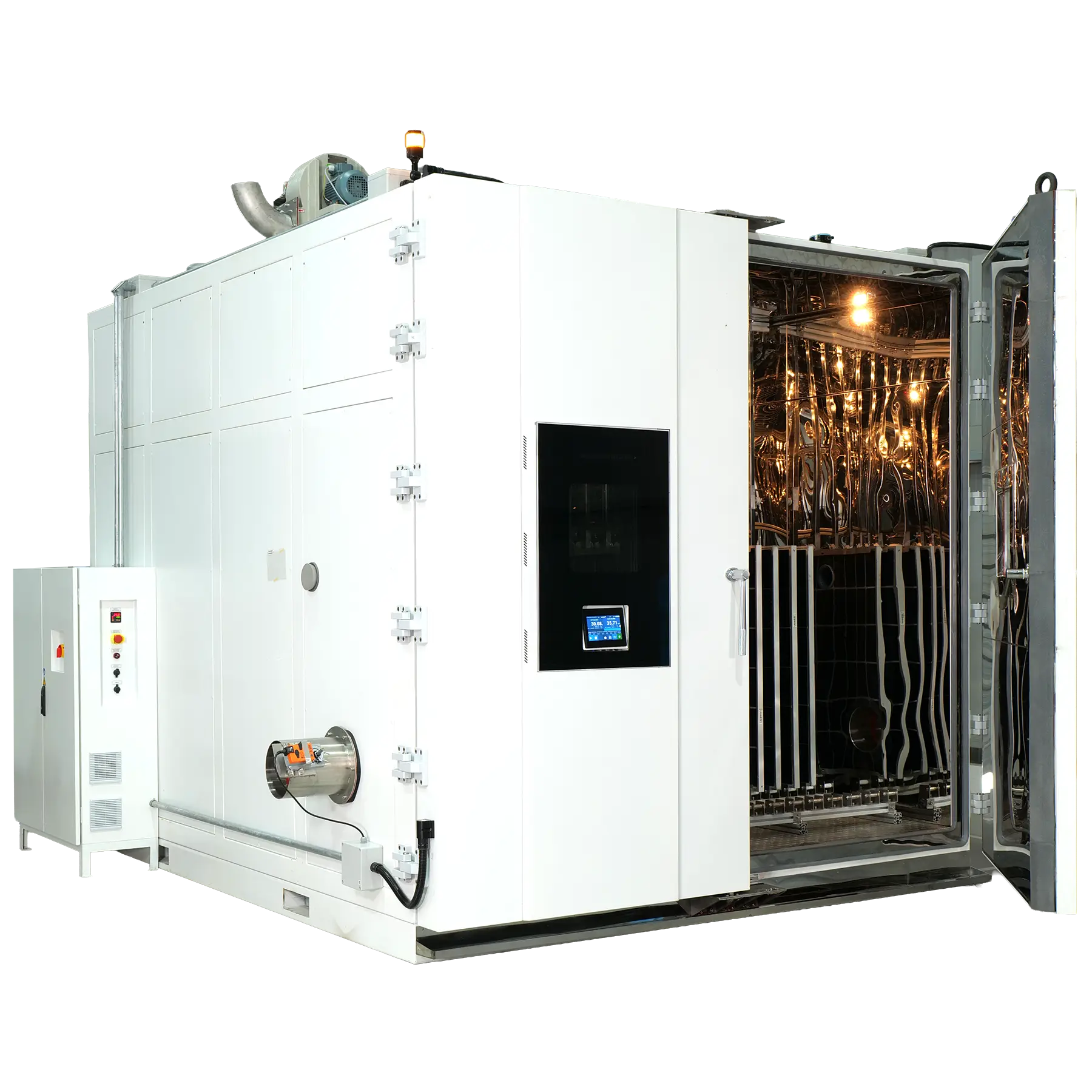

CME Humidity Freeze Test Chambers are engineered specifically for large area PV modules and long-duration test programs required by international standards.

These systems combine precise humidity control with stable freezing performance, ensuring repeatable and standards-compliant humidity–freeze cycles.

Compliance with Global PV Testing Standards

IEC 61215 – Humidity Freeze (HF) Test
IEC 61730 – Safety Qualification for PV Modules
UL 1703 / UL 61730
IS / IEC standards applicable to PV module qualification

Accurate Humidity and Freezing Control

CME chambers deliver controlled high-humidity exposure followed by rapid transition to sub-zero temperatures as defined in IEC standards.
Optimized airflow and refrigeration systems ensure uniform temperature and humidity distribution across the entire PV module surface.

Typical PV Testing Applications

PV module certification and qualification testing
Reliability and lifetime assessment
Seal integrity and moisture ingress evaluation
Failure analysis and design validation
R&D testing for advanced PV technologies

Digital Intelligence with enviCoM® 4.0

CME Humidity Freeze Chambers are powered by enviCoM® 4.0, CME’s proprietary digital control and IoT platform.

The platform enables precise programming of humidity freeze cycles, real-time monitoring, secure data logging, alarm management, and automated test reporting.

Prepare for IEC PV Module Qualification

Configure thermal cycling, humidity freeze, damp heat, and UV preconditioning systems.

Model		MWC5000	MWC8000	MWC15K
Test Space Dimension	in mm (WxDxH)	1300 x 2500 x 1500	1400 x 2950 x 1850	3251 x 1575 x 3048
Test Space Dimension	in inches (WxDxH)	51.18 x 98.43 x 59.06	55.12 x 116.14 x 72.83	128 x 62 x 120
Test Space Volume	in Ltrs	4875	7640	15600
Test Space Volume	in Cu.ft	170	270	550
Temperature Range	°C	-50 to +120
Temperature Range	°F	-58 to +248
Ramp Rates		Options: 100 deg C/Hour or 200 deg C/Hour
Climatic Range	in °C	+10 to +85
Climatic Range	in °F	+50 to +185
Humidity Range		10 to 98% RH
Panel Size	in mm (WxDxH)	50 x 2300 x 1400	50 x 2500 x 1500	50 x 1500 x 2500
No of panels	Nos	10	10	25

Data-Driven PV Reliability Testing

High-resolution temperature and humidity data provide complete traceability for audits, certification bodies, and long-duration qualification programs.

Chamber Configurations for PV Modules

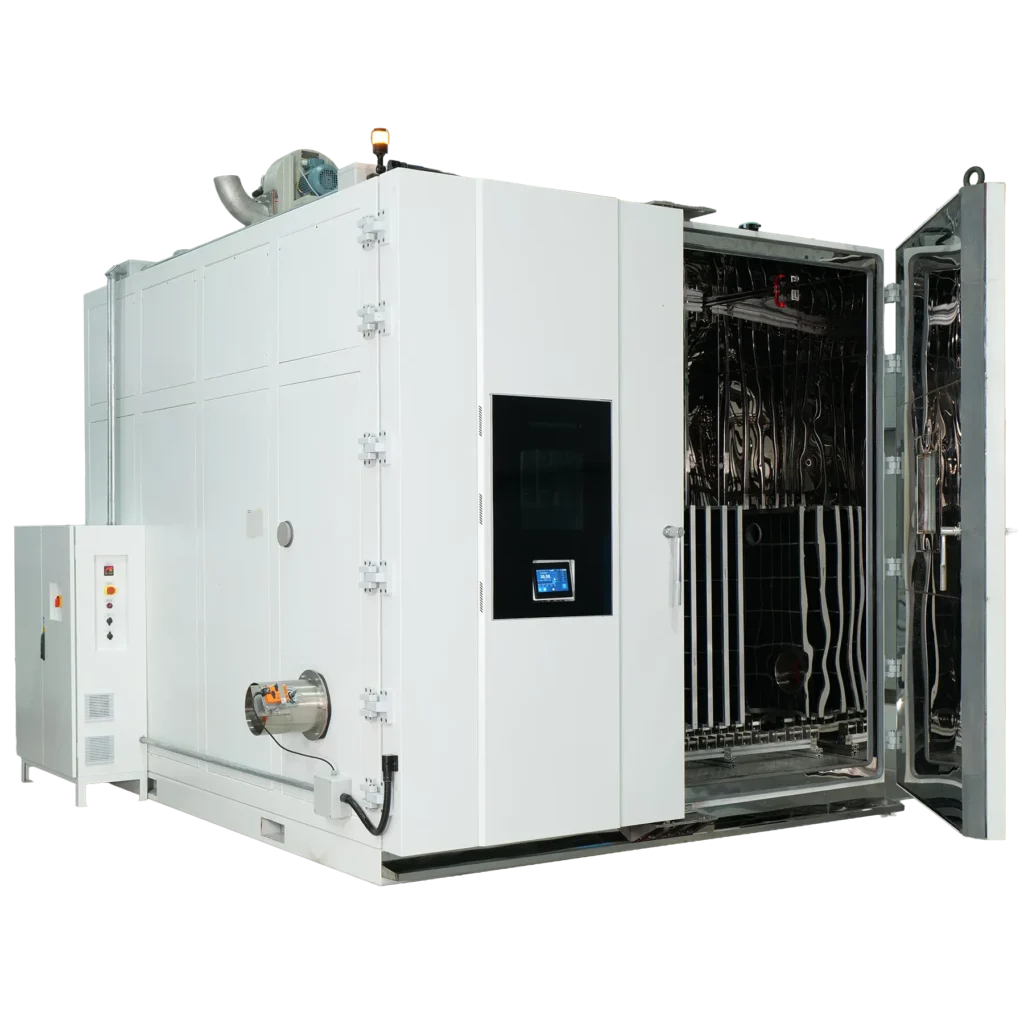

CME Humidity Freeze Chambers are available in large reach-in and walk-in configurations to accommodate full-size PV modules.
Custom module mounting, feedthroughs, and test orientations can be configured to meet specific test protocols.

Engineered for Long-Duration, High-Stress Testing

Humidity freeze testing places extreme demands on chamber stability and reliability.
CME chambers are manufactured in a digitally orchestrated production environment with strict quality control and factory validation to ensure uninterrupted test execution.

Lifecycle Support with Levito

Through CME’s lifecycle partner Levito, humidity freeze chambers are supported with installation, commissioning, calibration, preventive maintenance, and long-term service.

Also Known As
PV Humidity Freeze Test Chamber

IEC 61215 Humidity Freeze Chamber
Solar Module Humidity Freeze Chamber
Photovoltaic Reliability Test Chamber
Solar Panel Humidity Freeze Chamber

Why Choose CME for Humidity Freeze Testing?

Designed specifically for PV module dimensions and test cycles
Standards-compliant humidity freeze performance
Uniform temperature and humidity control
Digital-first controls and traceability
Strong lifecycle and service support

What is the humidity freeze test for PV modules?

The humidity freeze test is a reliability test that exposes photovoltaic (PV) modules to high humidity conditions followed by sub-zero temperatures to evaluate resistance to moisture ingress, mechanical stress, and material degradation.

Why is humidity freeze testing important for solar panels?

Solar modules installed in outdoor environments experience moisture exposure followed by freezing temperatures. This test ensures that trapped moisture does not cause cracking, delamination, insulation failure, or long-term performance degradation.

Which standard specifies the humidity freeze test?

The humidity freeze test is defined under IEC 61215 for crystalline silicon and thin-film PV modules. It is part of the environmental qualification sequence for module certification.

Which standard What are the typical test conditions for humidity freeze?

As per IEC 61215, modules are exposed to 85°C and 85% relative humidity for a defined duration, followed by rapid cooling to -40°C. This sequence typically forms one cycle, repeated multiple times (commonly 10 cycles).

How many humidity freeze cycles are required?

IEC 61215 typically requires 10 humidity freeze cycles as part of module qualification testing.

What does the humidity phase evaluate?

The humidity phase evaluates moisture penetration into encapsulant materials, junction boxes, and sealing systems, identifying potential corrosion or insulation weaknesses.

What does the freeze phase evaluate?

The freeze phase evaluates the effect of rapid temperature reduction on moisture-laden components, testing resistance to cracking, delamination, glass breakage, and seal failure.

Is humidity freeze different from damp heat testing?

Yes. Damp heat testing exposes modules to constant high temperature and humidity (85°C/85% RH), while humidity freeze adds a freezing cycle to evaluate stress caused by moisture combined with sub-zero temperatures.

How long does a humidity freeze test take?

The duration depends on cycle programming, but completing 10 cycles typically takes several days to a few weeks, depending on chamber ramp rates and stabilization times.

Why is humidity freeze testing critical for cold-climate installations?

In regions with snow, frost, and seasonal freezing, moisture infiltration followed by freezing can expand and damage materials. This test validates module durability under such conditions.
