Thermal Cycling Chambers for PV Module Testing
Accelerated Reliability Testing for Solar Modules Under Extreme Thermal Stress, Photovoltaic (PV) modules are exposed to repeated temperature fluctuations over their operational life, from cold nights to intense daytime heating. These cyclic stresses induce mechanical fatigue, micro-cracking, solder joint degradation, and delamination.
Why Thermal Cycling Is Critical for PV Module Reliability
Innovation Rooted in Engineering Depth
Thermal cycling testing is therefore a core requirement for validating the long-term reliability and performance of PV modules before field deployment.
Purpose-Built Thermal Cycling Chambers for PV Modules

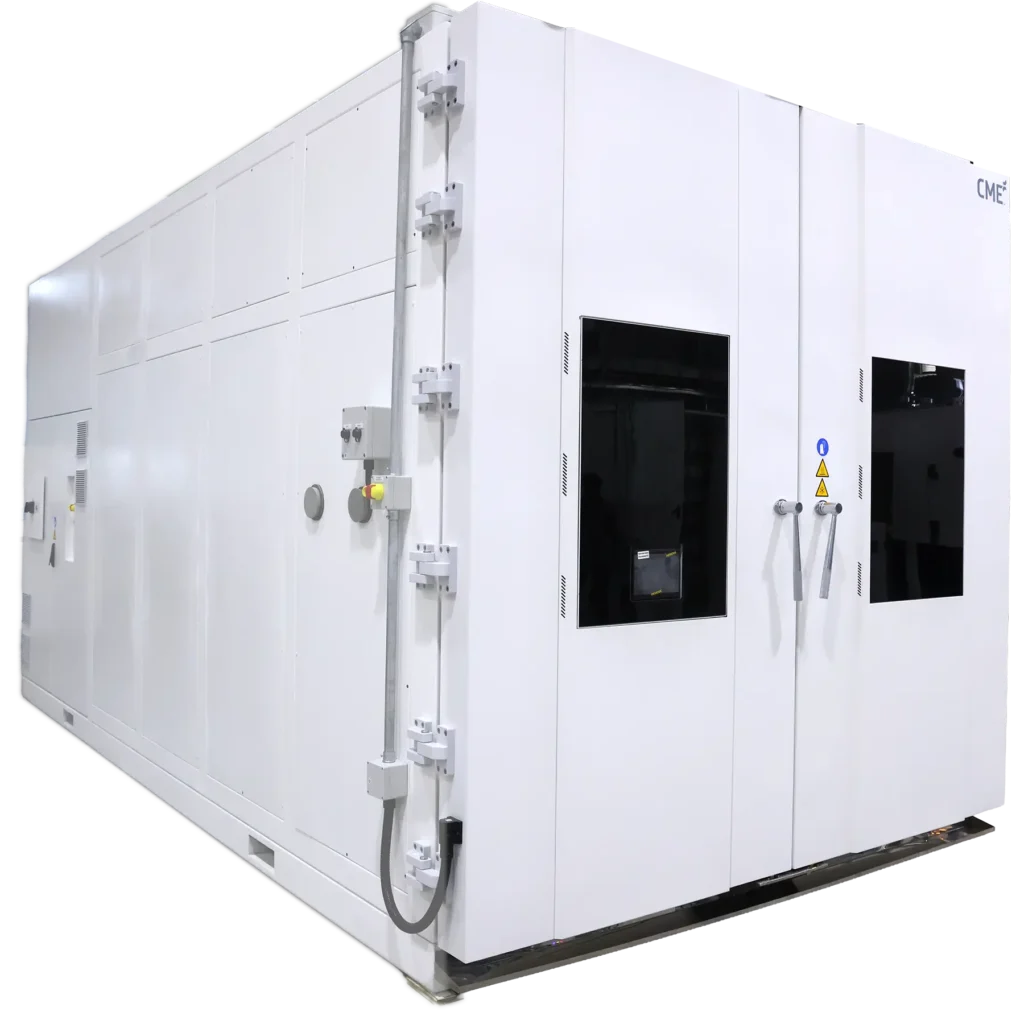

CME Thermal Cycling Chambers for PV Module testing are engineered specifically to handle large-area modules, high thermal mass, and long-duration cyclic test programs.
Unlike generic climatic chambers, CME systems are optimized for fast ramp rates, stable dwell conditions, and repeatable cycle execution demanded by PV standards.
Compliance with Global PV Testing Standards
- IEC 61215 – Thermal Cycling (TC) Test
- IEC 61730 – Safety Qualification for PV Modules
- IEC 62782 – Dynamic Mechanical Load (when combined testing is required)
- UL 1703 / UL 61730
- IS/IEC standards applicable to PV module qualification
High-Performance Temperature Cycling Capability
CME chambers deliver precise control of extreme temperature transitions required for PV testing, typically cycling between low and high temperature limits as specified by IEC standards.
Optimized airflow design and high-capacity refrigeration systems ensure uniform temperature distribution across the entire module surface—even for large-format PV panels.
Typical PV Testing Applications
- PV module qualification and certification testing
- Reliability and lifetime assessment
- Process validation for module manufacturing
- Failure analysis and design validation
- R&D testing for next-generation PV technologies
Digital Intelligence with enviCoM® 4.0
- CME Thermal Cycling Chambers are powered by enviCoM® 4.0, CME’s proprietary digital control and IoT platform.
- The system enables precise programming of thermal cycles, real-time monitoring, secure data logging, alarm management, and automated test reporting.
Prepare for IEC PV Module Qualification
Configure thermal cycling, humidity freeze, damp heat, and UV preconditioning systems.
| Model | MWC5000 | MWC8000 | MWC15K | |
|---|---|---|---|---|
|
Test Space Dimension |
in mm (WxDxH) |
1300 x 2500 x 1500 |
1400 x 2950 x 1850 |
3251 x 1575 x 3048 |
|
in inches (WxDxH) |
51.18 x 98.43 x 59.06 |
55.12 x 116.14 x 72.83 |
128 x 62 x 120 |
|
|
Test Space Volume |
in Ltrs |
4875 |
7640 |
15600 |
|
in Cu.ft |
170 |
270 |
550 |
|
|
Temperature Range |
°C |
-50 to +120 |
||
|
°F |
-58 to +248 |
|||
|
Ramp Rates |
|
Options: 100 deg C/Hour or 200 deg C/Hour |
||
|
Climatic Range |
in °C |
+10 to +85 |
||
|
in °F |
+50 to +185 |
|||
|
Humidity Range |
|
10 to 98% RH |
||
|
Panel Size |
in mm (WxDxH) |
50 x 2300 x 1400 |
50 x 2500 x 1500 |
50 x 1500 x 2500 |
|
No of panels |
Nos |
10 |
10 |
25 |
|
Customized Ramp Rates and Temperature Ranges available |
||||
Data-Driven PV Reliability Testing
High-resolution temperature data and cycle logs provide complete traceability for certification bodies, audits, and internal validation.
Digital records support long-duration test programs spanning hundreds of thermal cycles.
Chamber Configurations for PV Modules
CME Thermal Cycling Chambers are available in walk-in and large reach-in configurations to accommodate full-size PV modules and multiple test specimens.
Custom fixtures, module mounting orientations, and feedthroughs can be configured to meet specific test protocols.
Engineered and Validated for Long-Duration Testing
PV thermal cycling tests can run continuously for weeks or months.
CME chambers are manufactured in a digitally orchestrated production environment with strict quality control and factory validation to ensure long-term stability.
Lifecycle Support with Levito
Through CME’s lifecycle partner Levito, PV thermal cycling chambers are supported with installation, commissioning, calibration, preventive maintenance, and long-term service.
Also Known As
PV Thermal Cycling Chamber
Solar Module Thermal Cycle Test Chamber
- IEC 61215 Thermal Cycling Chamber
- Photovoltaic Module Test Chamber
- Solar Panel Thermal Cycling Chamber
Why Choose CME for PV Thermal Cycling?
Designed specifically for PV module size and thermal mass
- Standards-compliant thermal cycling performance
- Stable, uniform temperature control over large areas
- Digital-first controls and traceability
- Strong lifecycle and service support
What is PV module thermal cycling?
PV module thermal cycling is a reliability test that exposes solar photovoltaic modules to repeated high and low temperature cycles to evaluate their durability, electrical stability, and mechanical integrity under long-term environmental stress.
Why is thermal cycling important for solar modules?
Solar panels experience daily and seasonal temperature variations in real-world installations. Thermal cycling testing ensures that modules can withstand expansion and contraction stresses without cracking, delamination, solder joint failure, or power degradation.
What standards govern PV thermal cycling tests?
The most common standard is IEC 61215, which specifies thermal cycling requirements for crystalline silicon and thin-film PV modules. Other related standards may include IEC 61730 for safety qualification.
What temperature range is used in PV thermal cycling tests?
As per IEC 61215, modules are typically cycled between -40°C and +85°C. Some advanced validation programs may extend beyond this range depending on project requirements.
How many cycles are required for IEC compliance?
IEC 61215 typically requires 200 thermal cycles (TC200) for qualification. Extended reliability programs may require 400 or 600 cycles for enhanced durability validation.
How long does a thermal cycling test take?
The duration depends on the number of cycles and ramp rates. A standard 200-cycle test may take several weeks to complete, depending on chamber performance and module size.
What happens to PV modules during thermal cycling?
Repeated heating and cooling cause expansion and contraction of materials such as glass, silicon cells, encapsulant (EVA), and backsheet. The test evaluates resistance to microcracks, interconnect fatigue, seal failure, and power loss.
How is module performance evaluated after testing?
Electrical performance is measured before and after the test using flash testing to determine power output degradation. Visual inspection and electroluminescence (EL) imaging are used to detect cracks and defects.
Can bifacial or thin-film modules undergo thermal cycling?
Yes. Thermal cycling applies to crystalline silicon, bifacial, and thin-film PV modules. Test parameters may vary slightly depending on module technology.
What chamber size is required for PV module testing?
Chamber size depends on module dimensions and test quantity. Large walk-in or customized horizontal chambers are typically used to accommodate full-scale solar panels.
