Thermo Mechanical Chambers for High Voltage Insulators
Standards Compliant Testing
IEC 61109 – Composite insulators for overhead lines | IEC 60060 – High-voltage test techniques | IEC 61466 – Mechanical tests on insulator strings | IEC 62217 – Polymeric insulator requirements
Why Thermo Mechanical Chambers Are Critical for High Voltage Insulators
Simultaneous Thermal and Mechanical Load Testing for Power Grid Reliability. High voltage insulators used in transmission and distribution networks are subjected to simultaneous mechanical loads and severe thermal variations throughout their service life.
Innovation Rooted in Engineering Depth
Wind loading, conductor tension, thermal expansion, and ambient temperature cycling create combined stresses that can lead to mechanical failure, cracking, or loss of insulation integrity.
Thermo-mechanical testing is therefore essential to validate the long-term reliability and safety of high voltage insulators under realistic operating conditions.
Purpose Built Chambers for Insulator Thermo Mechanical Testing

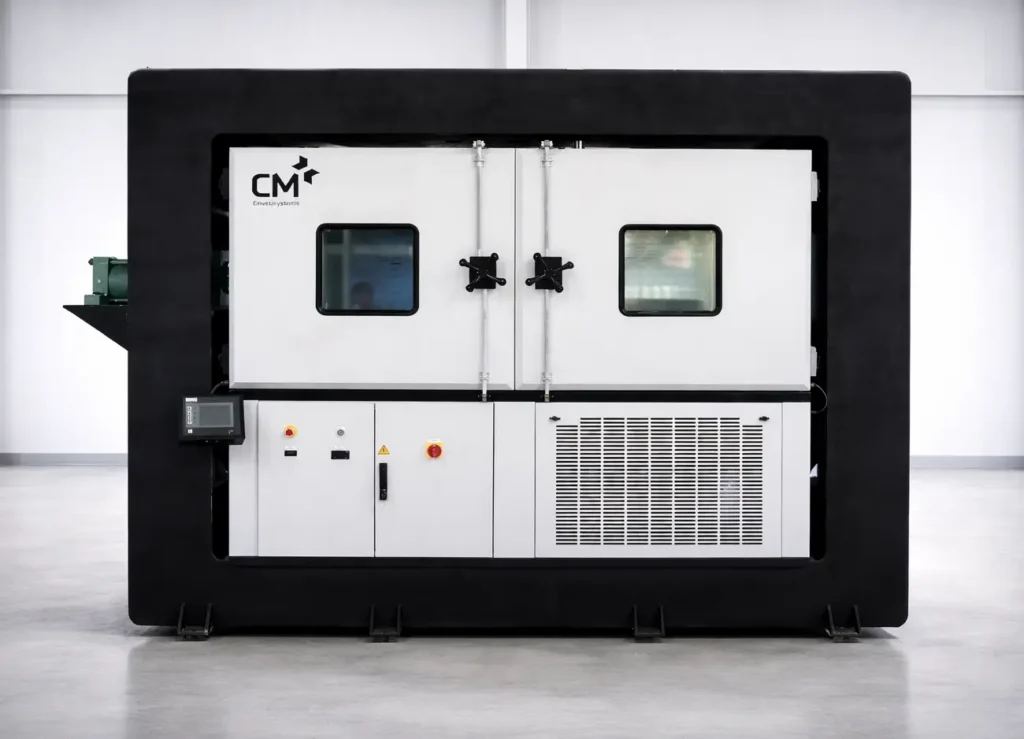

CME Thermo-Mechanical Test Chambers are engineered specifically to combine controlled thermal environments with precise mechanical load application.

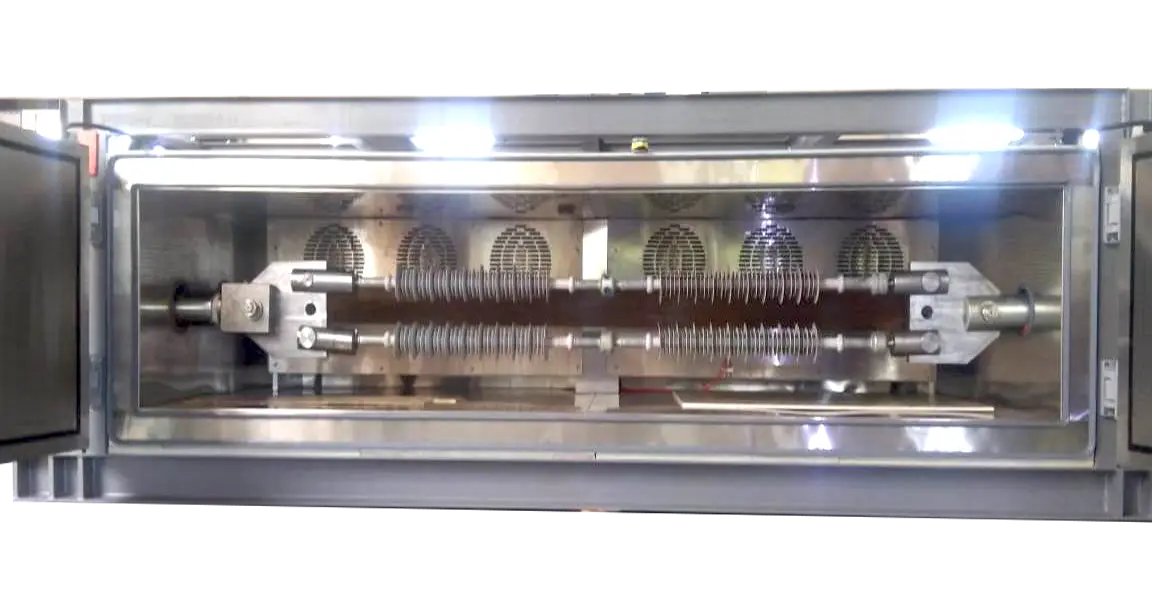

These chambers allow insulators to be tested under axial, tensile, or bending loads while being exposed to controlled temperature cycles.
Synchronized Thermal and Mechanical Load Control
CME chambers provide stable temperature control while mechanical loads are applied through integrated loading frames or external actuators.
Optimized airflow and insulation ensure uniform thermal exposure without influencing mechanical load accuracy.
Compliance with Power and Insulator Test Standards
- IEC 61109 – Composite insulators for overhead lines
- IEC 60060 – High-voltage test techniques
- IEC 61466 – Mechanical tests on insulator strings
- IEC 62217 – Polymeric insulator requirements
- Utility and OEM-specific grid qualification standards
Typical Applications
- Mechanical and thermal qualification of HV insulators
- Type testing and routine testing for utilities
- R&D validation of new insulator designs and materials
- Failure analysis and lifetime assessment
- Grid modernization and reliability programs
Digital Intelligence with enviCoM® 4.0
CME thermo-mechanical test chambers are powered by enviCoM® 4.0, CME’s proprietary digital control and IoT platform.
The platform enables synchronized monitoring of temperature profiles and mechanical load conditions, secure data logging, alarm management, and automated reporting.
Evaluate Thermo Mechanical Reliability
Design combined thermal and mechanical load testing systems for power grid components.
Data-Driven Insulator Reliability Testing
Synchronized thermal and mechanical data provides insight into material behavior, creep, fatigue, and failure mechanisms.
Flexible Configurations for Insulator Testing
CME chambers can be configured for different insulator sizes, voltage classes, and mechanical load requirements.
Both vertical and horizontal test orientations, custom load frames, and safety interlocks can be incorporated.
Engineered for Structural Safety and Long-Term Testing
CME chambers are engineered with reinforced structures, safety enclosures, and validated load interfaces to ensure operator safety and long-term reliability.
Lifecycle Support with Levito
Through CME’s lifecycle partner Levito, thermo mechanical insulator test chambers are supported with installation, commissioning, calibration coordination, preventive maintenance, and long-term service.
Why Choose CME for Insulator Thermo Mechanical Testing?
Integrated thermal and mechanical testing capability
Standards-compliant power grid testing
Stable temperature control during load application
Digital-first monitoring and traceability
Strong lifecycle and service support
Also Known As
Thermo Mechanical Test Chamber
- High Voltage Insulator Test Chamber
- Environmental Chamber for Insulator Testing
- Mechanical Load Environmental Chamber
- Power Grid Insulator Test System
What is a Thermo-Mechanical Test Chamber for High Voltage Insulators?
A Thermo-Mechanical Test Chamber for High Voltage Insulators is a specialized test system designed to apply controlled temperature conditions simultaneously with mechanical loads such as tension, compression, or bending on high voltage insulators. These chambers are used to evaluate long-term mechanical integrity and thermal performance under realistic service conditions.
Why is thermo-mechanical testing important for high voltage insulators?
High voltage insulators experience combined stresses due to temperature variations, conductor tension, wind loading, and thermal expansion. Thermo-mechanical testing helps identify creep, fatigue, cracking, and long-term degradation that may not be evident under standalone tests.
What types of insulators can be tested using these chambers?
CME Thermo-Mechanical Test Chambers are suitable for testing composite, porcelain, glass, and polymeric high voltage insulators used in transmission and distribution networks.
What mechanical loads can be applied during testing?
These chambers support axial tensile loads, bending loads, and cyclic mechanical loading depending on the test setup and insulator configuration.
Which standards are supported for thermo-mechanical insulator testing?
CME chambers are designed to support standards such as IEC 61109, IEC 61466, IEC 62217, IEC 60060, and utility or OEM-specific grid qualification requirements.
How are CME Thermo-Mechanical Chambers different from standard environmental chambers?
Unlike standard climatic chambers, CME systems integrate reinforced structures, precise load interfaces, stable thermal control, and synchronized digital monitoring for true combined thermo-mechanical testing.
Can thermo-mechanical testing be performed over long durations?
Yes. CME chambers are engineered for long-duration and endurance testing, supporting extended thermal cycles and sustained mechanical loads required for lifetime and reliability evaluation.
How is temperature uniformity maintained during mechanical loading?
Optimized airflow design and insulation ensure uniform temperature distribution across the test specimen without influencing mechanical load accuracy.
How is test control and data logging handled?
All CME Thermo-Mechanical Test Chambers are powered by the enviCoM® 4.0 controller, enabling synchronized monitoring of temperature profiles, mechanical test conditions, alarms, and exportable test records.
What safety features are included in thermo-mechanical test chambers?
CME chambers incorporate reinforced structures, safety enclosures, emergency shutdown logic, load monitoring, and interlocks to ensure operator and equipment safety.
What industries and organizations use these test chambers?
These systems are widely used by power utilities, grid operators, transmission equipment manufacturers, R&D laboratories, and certification bodies.
What service and lifecycle support is available?
CME provides full lifecycle support through Levito, including installation, commissioning, integration support, calibration coordination, preventive maintenance, and long-term service support.
How do thermo-mechanical test chambers fit into CME’s power and infrastructure testing portfolio?
Thermo-mechanical test chambers complement CME’s environmental, corrosion, and combined stress systems, enabling comprehensive qualification of power grid components.
